| Quantity: | |
|---|---|

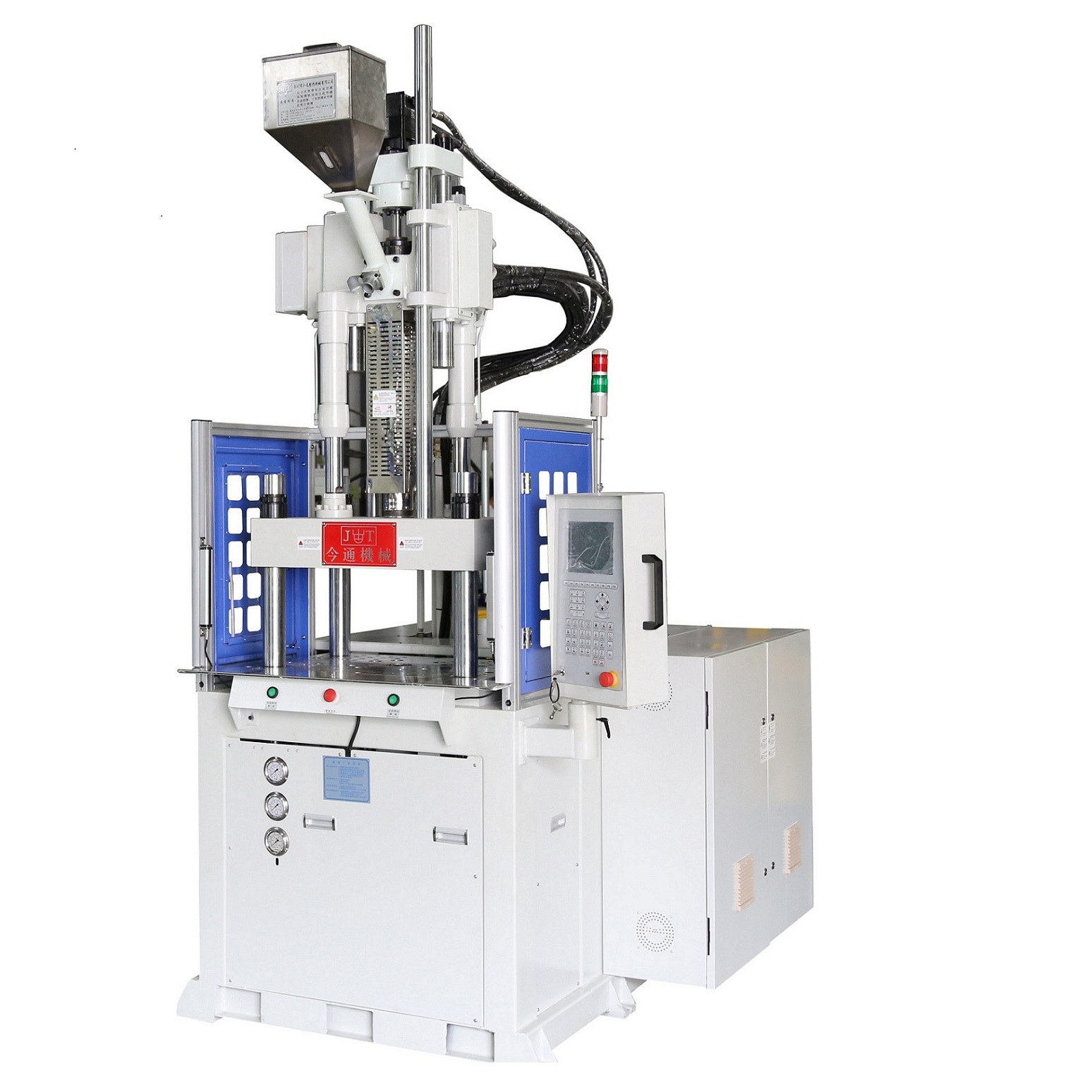

JTT-1600
JINTONG
| Model | JTT-1600 | ||
| injection system | Screw Diameter | mm | 40 45 50 55 |
| Injection Pressure | kg/cm2 | 2195 2129 1724 1425 | |
| Theoretical Shot Volume | cm3 | 276 349 432 522 | |
| Max Shot Weight | g | 248 314 388 469 | |
| Injection Rate | cm3/sec | 102 129.3 159.6 193 | |
| Screw Stroke | mm | 220 | |
| Screw Speed | rpm | 0-220 | |
| Nozzle Contact Force | tons | 4.2 | |
| Nozzle Stroke | mm | 300 | |
| Number of Temperature Control | - | 5 | |
| Hopper Capacity | L | 30 | |
| clamping system | Clamping Force | tons | 160 |
| Opening Force | tons | 20 | |
| Platen Size | mm | 950*700 | |
| Distance Between Tie Bar | mm | 750*500 | |
| Min Mold Height | mm | 250 | |
| Opening Stroke | mm | 300 | |
| Max Open Daylight | mm | 550 | |
| Ejector Force | tons | 4.8 | |
| Ejector Stroke | mm | 75/145 | |
| oil pressure system | Max Hydraulic Pressure | kg/cm2 | 140 |
| Pump Output | L/min | 118 | |
| Oil Reservior Capacity | L | 350 | |
| Cooling Water Consumption | /hr | 1700-1900 | |
| Pump Moter Power | KW | 18.75 | |
| Barrel Heating Power | kw | 10 | |
| Total Power | kw | 28.75 | |
| other | Machine Weight | tons | 5.2 |
| Machine Dimension | mm | 2.1*1.5*4.3 | |
| Shipping Weight | tons | 5.4 | |
| Shipping Measurement | mm | 2.1*1.6*4.4 | |
