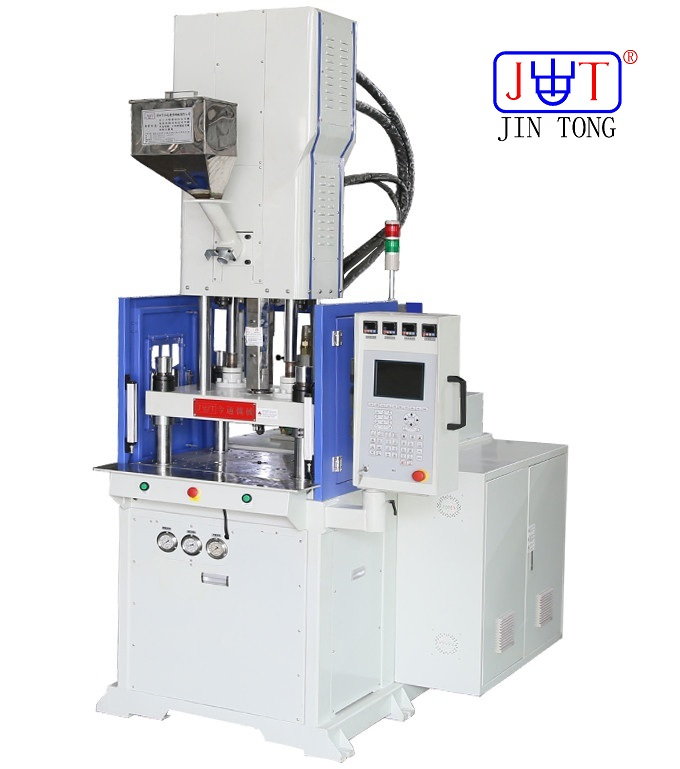

JTT-550HS
JINTONG
| Model | JTT-550HS | ||
| injection system | Screw Diameter | mm | 30 35 40 |
| Injection Pressure | kg/cm2 | 2170 1594 1220 | |
| Theoretical Shot Volume | cm3 | 99 135 176 | |
| Max Shot Weight | g | 90 123 160 | |
| Injection Rate | cm3/sec | 300 | |
| Screw Stroke | mm | 140 | |
| Screw Speed | rpm | 0-175 | |
| Nozzle Contact Force | tons | 2.6 | |
| Nozzle Stroke | mm | 200 | |
| Number of Temperature Control | - | 3 | |
| Hopper Capacity | L | 30 | |
| clamping system | Clamping Force | tons | 55 |
| Opening Force | tons | 13.5 | |
| Platen Size | mm | 650x490 | |
| Distance Between Tie Bar | mm | 500x340 | |
| Min Mold Height | mm | 260/200 | |
| Opening Stroke | mm | 200 | |
| Max Open Daylight | mm | 460/400 | |
| Ejector Force | tons | 1.3/2.1 | |
| Ejector Stroke | mm | 45/145 | |
| oil pressure system | Max Hydraulic Pressure | kg/cm2 | 140 |
| Pump Output | L/min | 47 | |
| Oil Reservior Capacity | L | 150 | |
| Cooling Water Consumption | /hr | 800-1000 | |
| Pump Moter Power | KW | 7.5 | |
| Barrel Heating Power | kw | 4.5 | |
| Total Power | kw | 12 | |
| other | Machine Weight | tons | 2.1 |
| Machine Dimension | m | 2.0*1.20*2.69 | |
| Shipping Weight | tons | 2.3 | |
| Shipping Measurement | m | 2.1*1.30*2.79 | |
