| Quantity: | |
|---|---|

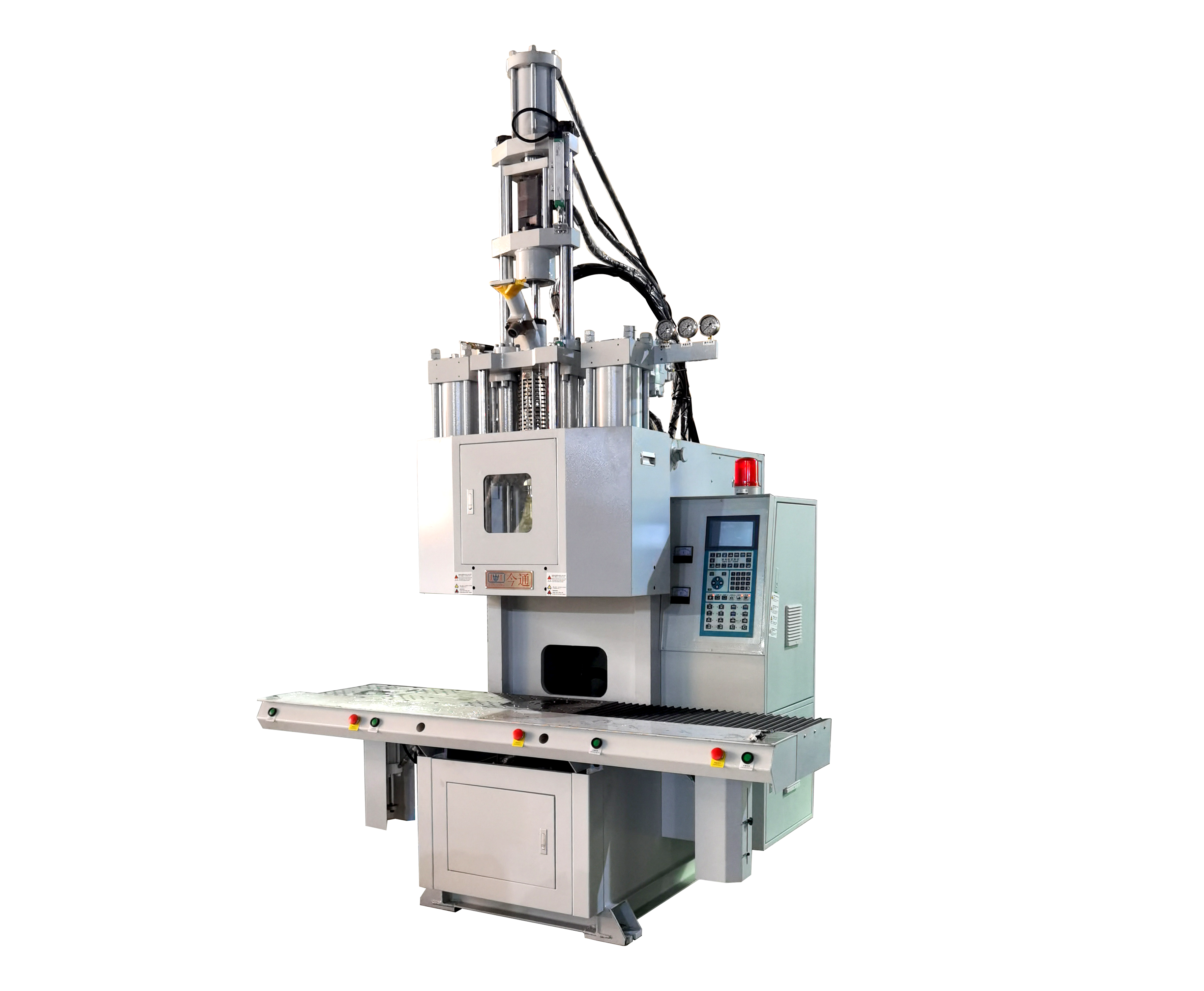

JTTC-450DM
JINTONG
| Model | JTTC-450DM | ||
| injection system | Screw Diameter | mm | 20 30 35 |
| Injection Pressure | kg/cm2 | 2509 1742 1280 | |
| Theoretical Shot Volume | cm3 | 59 85 115 | |
| Injection Rate | cm3/sec | 36 52 71 | |
| Screw Stroke | mm | 120 | |
| Screw Speed | rpm | 0-190 | |
| Nozzle Contact Force | tons | 2.4 | |
| Nozzle Stroke | mm | 180 | |
| Number of Temperature Control | - | 3 | |
| Hopper Capacity | L | 20 | |
| clamping system | Clamping Force | tons | 45 |
| Opening Force | tons | 8.3 | |
| Platen Size | mm | 490x350 | |
| Min Mold Height | mm | 150 | |
| Opening Stroke | mm | 250 | |
| Max Open Daylight | mm | 400 | |
| Ejector Force | tons | 1.3 | |
| Ejector Stroke | mm | 45 | |
| sliding system | Slide Stroke | mm | 420 |
| Max Mold Weight | kg | 120 | |
| Station Clearance | mm | ±0.02 | |
| oil pressure system | Max Hydraulic Pressure | kg/cm2 | 140 |
| Pump Output | L/min | 39 | |
| Oil Reservior Capacity | L | 130 | |
| Cooling Water Consumption | /hr | 600-800 | |
| Pump Moter Power | KW | 5.5 | |
| Barrel Heating Power | kw | 3.5 | |
| Total Power | kw | 9 | |
| other | Machine Weight | tons | 1.6 |
| Machine Dimension | M | 1.75*2.05*2.85 | |
