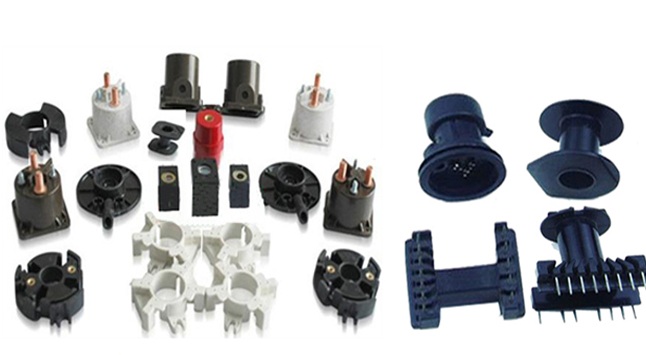

JTT-550R BMC
JINTONG
| Model | JTT-550R | ||
| injection system | Screw Diameter | mm | 30 35 40 |
| Injection Pressure | kg/cm2 | 2240 1645 1260 | |
| Theoretical Shot Volume | cm3 | 95 130 170 | |
| Max Shot Weight | g | 80 108 141 | |
| Injection Rate | cm3/sec | 64 86 113 | |
| Screw Stroke | mm | 135 | |
| Screw Speed | rpm | 150 | |
| Heating Capacity | kw | 5.3 | |
| clamping system | Clamping Force | tons | 61 |
| Opening Force | tons | 8.9 | |
| Min Mold Height | mm | 200/260 | |
| Opening Stroke | mm | 250 | |
| Max Open Daylight | mm | 450/510 | |
| Mold Dimension | mm | 450*325 | |
| Rotary Table Diameter | 1080 | ||
| Ejector Force | tons | 1.8 | |
| Ejector Stroke | mm | 60 | |
| other | Motor Power | kw | 11.2 |
| Sliding Table Stroke | mm | — | |
| Machine Dimension | m | 1.8*1.8*2.85 | |
| Machine Weight | tons | 2.4 |
