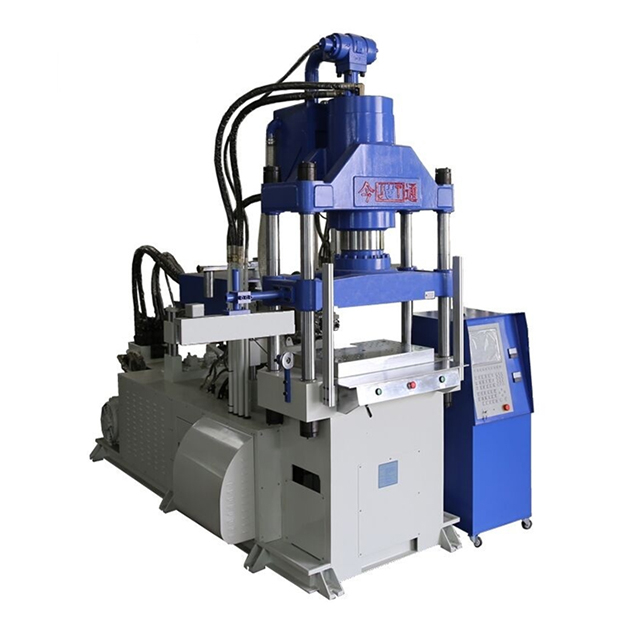

JTKR-1200
JINTONG
| UNIT | JTKR-1200 | ||
| INJECTION SYSTEM | screw diameter | mm | 45 50 |
| injection pressure | kg/cm2 | 1560 1262 | |
| theoretical shot volume | cm3 | 286 353 | |
| shot weight | g | 260 320 | |
| injection rate | cm3/sec | 118 145 | |
| screw stroke | mm | 180 | |
| screw speed | rpm | 0-160 | |
| nozzle contact force | tons | 6 | |
| nozzle stroke | mm | 250 | |
| temprature control number | - | 5 | |
| hopper capacity | L | 40 | |
| CLAMPING SYSTEM | clamping force | tons | 120 |
| opening force | tons | 18 | |
| platen size | mm | 480*760 | |
| distance between tie bar | mm | 1000*260 | |
| min mould height | mm | 200 | |
| opening stroke | mm | 250 | |
| max open daylight | mm | 430 | |
| ejector force | tons | 2.7 | |
| ejector stroke | mm | 45/95 | |
| SLIDE SYSTEM | slide stroke | mm | 400/980 |
| max mold weight | kg | 2-4 | |
| station clearance | mm | 350*2/240*3 | |
| OIL PRESSURE SYSTEM | max hydraulic pressure | kg/cm2 | ±0.02 |
| pump output | L/min | 175 | |
| oil reservoir capacity | L | 79-14 | |
| cooling water consumption | /hr | 420 | |
| pump motor power | KW | 1000-1200 | |
| heating power | kw | 15 | |
| total power | kw | 10 | |
| OTHER | machine weight | tons | 25 |
| machine dimension | m | 7 | |
| 3.9*1.5*2.7 | |||
| shipping weight | tons | 7.8 | |
| shipping measurement | m | 4.4*1.7*2.6 |
