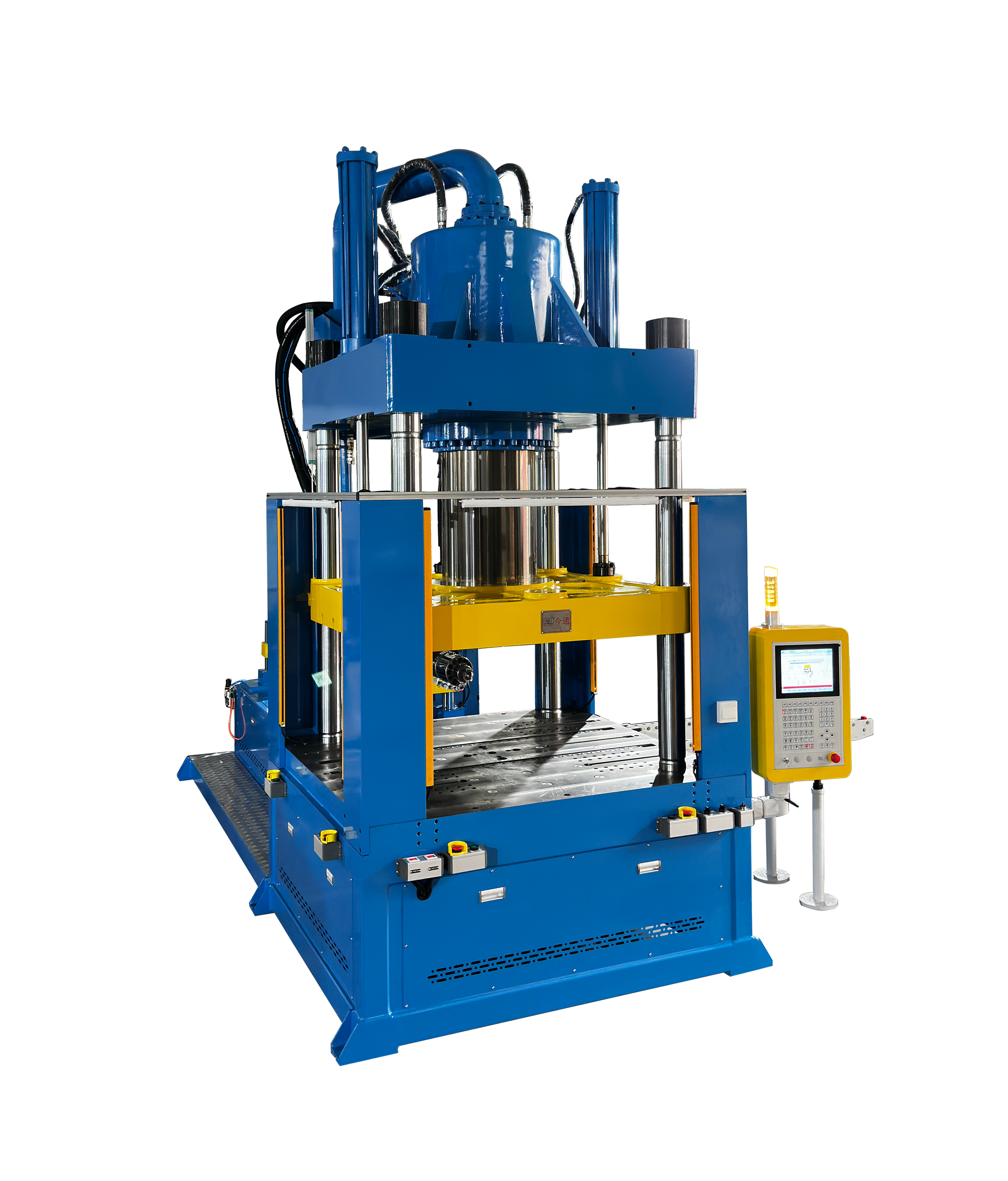

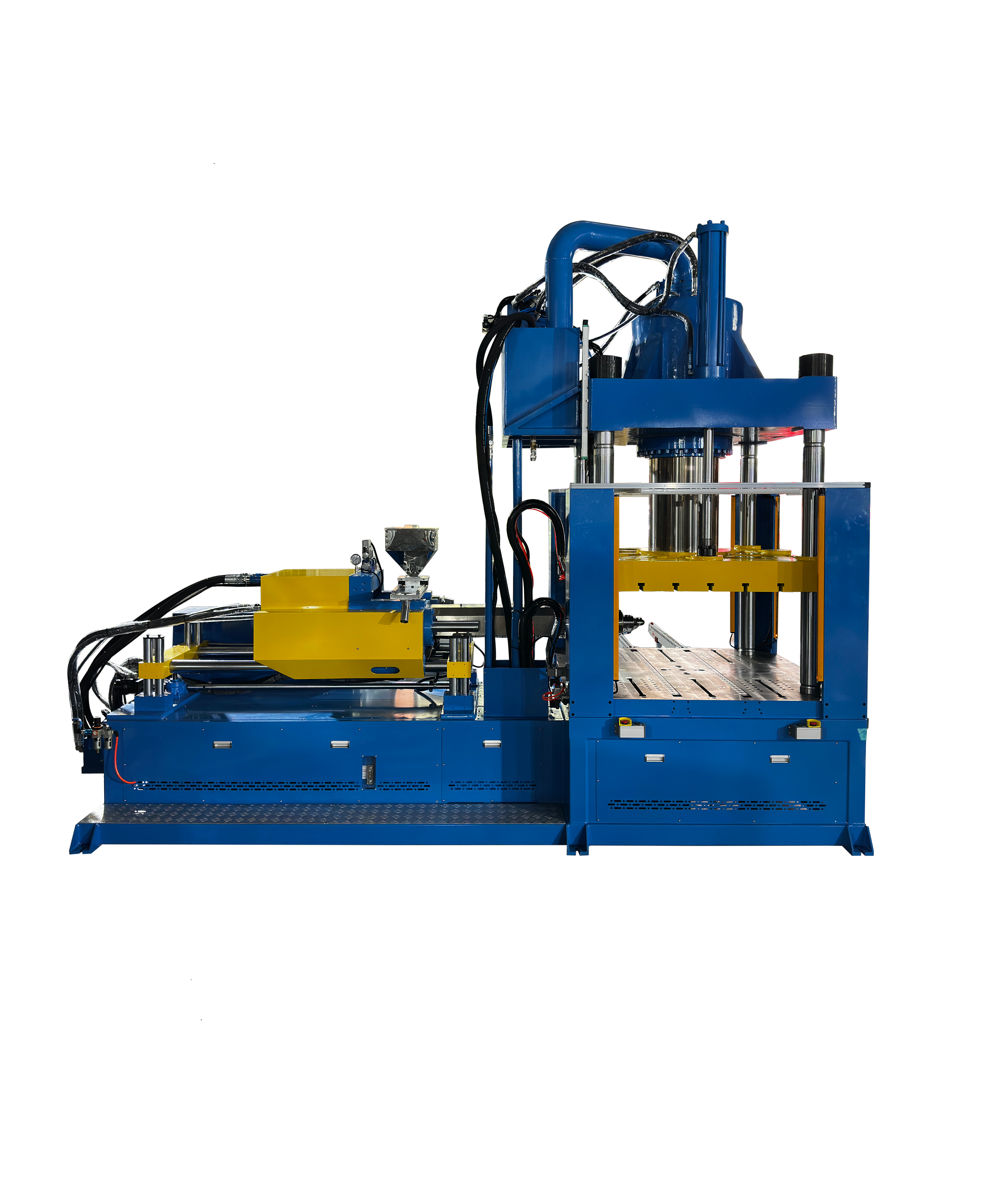

220T Vertical Clamping Horizontal Injection Molding Machine

Clamping force: 220T Max shot volume: 1061cm3 Low work table Vertical clamping, horizontal injection
Availability:
Quantity:
220T Vertical Clamping Horizontal Injection Molding Machine
220T Vertical Clamping Horizontal Injection Molding Machine
  • JTKR-2200

  • JINTONG



UNITJTKR-2200
INJECTION SYSTEMscrew   diametermm65
injection pressurekg/cm21416
theoretical shot volumecm31061
injection ratecm3/sec71
screw strokemm180
screw speedrpm0-160
nozzle contact forcetons6
temprature control number-6
CLAMPING SYSTEMclamping   forcetons220
opening forcetons18
distance between tie barmm1500*1300
min mould heightmm1200*1000
opening strokemm550
max open daylightmm550
ejector forcetons1100
ejector strokemm7
OIL PRESSURE SYSTEMmax   hydraulic pressurekg/cm2150
pump outputL/min140
oil reservoir capacityL800
cooling water consumption/hr1500-2000
SERVO motor powerKW40
heating powerkw25
total powerkw65
OTHERmachine   weighttons17
machine dimensionm4.4*1.75*3.5


220T vertical clamping horizontal Injection Molding Machine

Clamping Force: 220T


Vertical clamping, horizontal injection

Easy to set torque , speed, deceleration distance and stand number segmentation


Energy-saving system


Main Features

1) vertical clamping, horizontal injection,

2) clamping force, injection weight and shot speed can be changed according to actual demand.


IMG_2071
