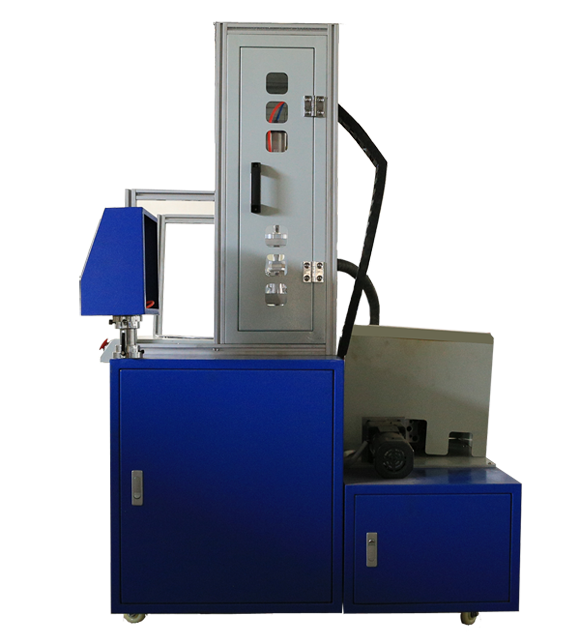

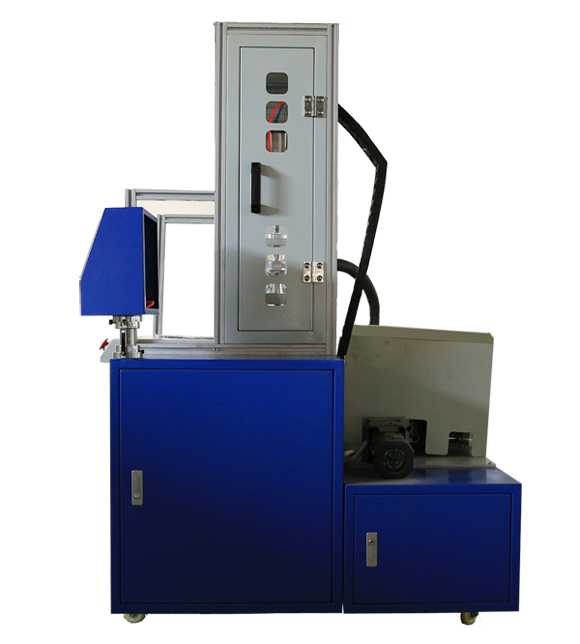

JTT-100DR
JINTONG
| Model | JTT-100DR | ||
| injection system | cylinder Diameter/length | mm | Φ8*1600 |
| Injection Pressure | kg/cm2 | 1.5-4 | |
| Max shot weight | g | 100 | |
| Nozzle Stroke | mm | 50 | |
| Number of Temperature Control | - | 1+2 | |
| Hopper Capacity | L | 6 | |
| clamping system | Clamping Force | tons | 1 |
| Opening Force | tons | 0.4 | |
| Platen Size | mm | 220*330 | |
| Distance Between Tie Bar | mm | 390 | |
| Min Mold Height | mm | 20 | |
| Opening Stroke | mm | 150 | |
| Max Open Daylight | mm | 200 | |
| Ejector Force | tons | 0.1 | |
| Ejector Stroke | mm | 10 | |
| air pressure electric system | Into the main pressure | kgf/cm2 | 42497 |
| Voltage | V | 220 | |
| Motor power | kw | 0.4 | |
| Total Power | kw | 3.4 | |
| Working power | KW | 0.8 | |
| other | Machine Weight | tons | 0.5 |
| Machine Dimension | m | 0.85*0.75*1.67 | |
