| Quantity: | |
|---|---|

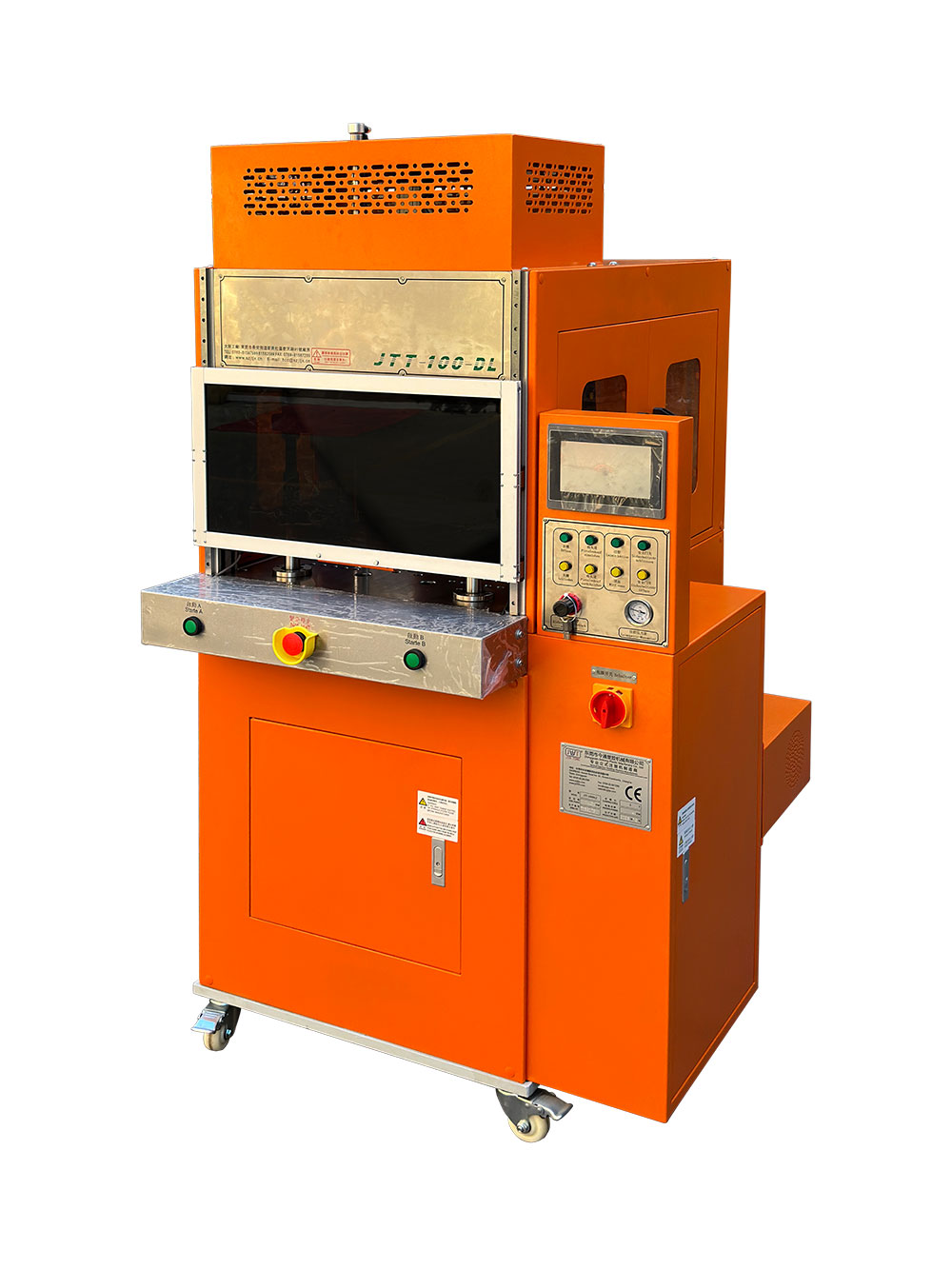

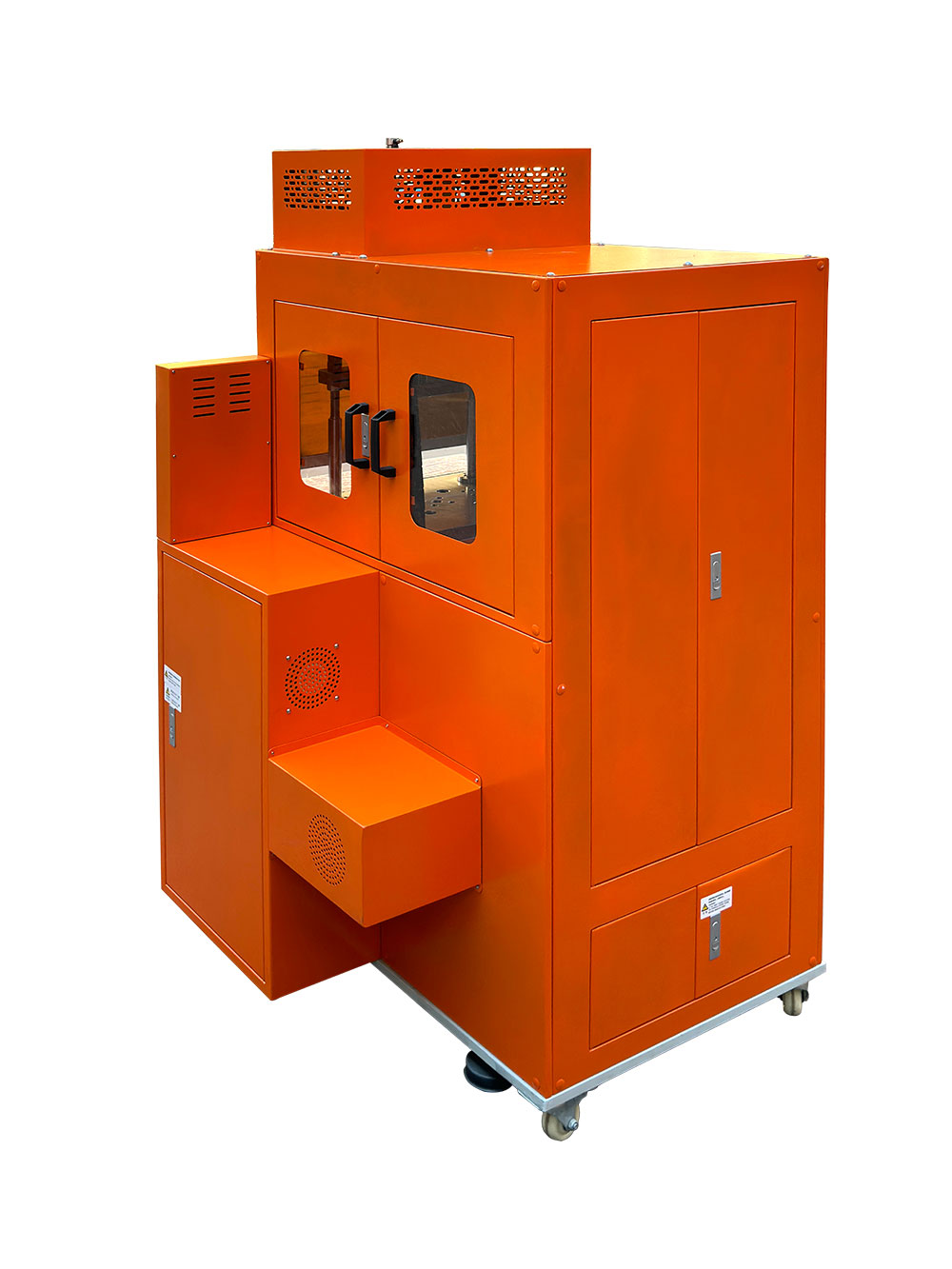

JTT-100-1-Z
JINTONG
| Model | JTT-100-DL- | ||
| injection system | cylinder Diameter/length | mm | Φ8x1500 |
| Injection Pressure | kg/cm2 | 1.5-4 | |
| Max shot weight | g | 5-50 | |
| Nozzle Stroke | mm | 100 | |
| Number of Temperature Control | - | 3 | |
| Hopper Capacity | L | 5 | |
| clamping system | Clamping Force | tons | 1 |
| Opening Force | tons | 0.4 | |
| Rotray table diameter | mm | 610x400 | |
| Max mold size | mm | 360x210 | |
| Min Mold Height | mm | 160 | |
| Opening Stroke | mm | 240-340 | |
| Max Open Daylight | mm | 80-180(can be adjusted) | |
| Ejector Force | tons | 0.1 | |
| Ejector Stroke | mm | 10 | |
| air pressure electric system | Into the main pressure | kgf/cm2 | 5.0-7.0 |
| Voltage | V | 220 | |
| Motor power | kw | 0.2 | |
| Heating Power | kw | 4 | |
| Total power | KW | 4.2 | |
| other | Machine Weight | tons | 0.5 |
| Machine Dimension | m | 1.1x1.1x1.75 |
