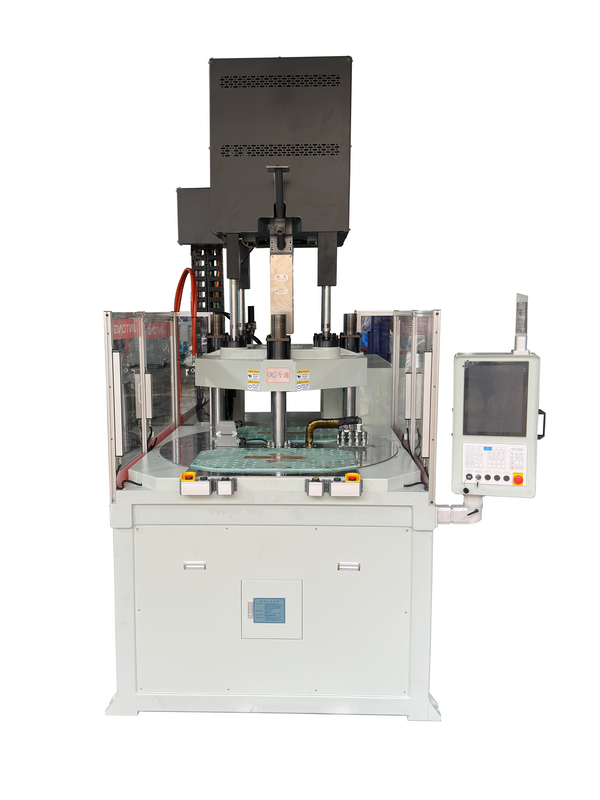

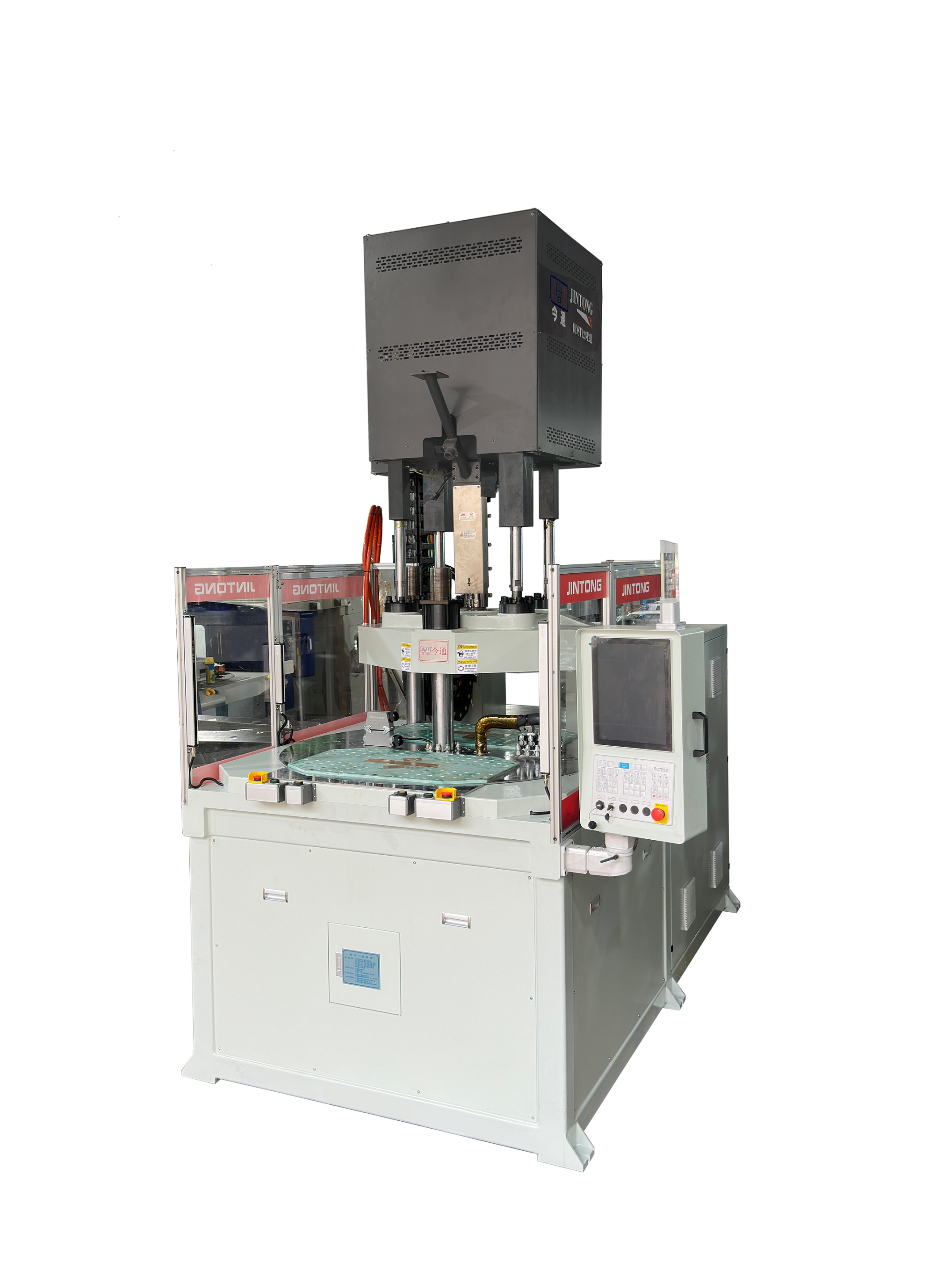

JTT-1200-2R-DS
JINTONG
| Model型号 | JTT-1200-2R-DS | ||
| injection system | Screw Diameter螺杆直径 | mm | 32 |
| Injection Pressure射出压力 | kg/cm2 | 2200 | |
| Theoretical Shot Volume理论射出容量 | cm3 | 112 | |
| Injection Speed射出速度 | mm/s | 300 | |
| Injection Rate射出率 | cm3/sec | 240 | |
| Screw Stroke螺杆行程 | mm | 140 | |
| Screw Speed螺杆转速 | rpm | 0-400 | |
| Nozzle Contact Force射嘴接触力 | tons | 4 | |
| Positioning Ring Diameter定位环直径 | mm | 120 | |
| Nozzle diameter射嘴直径 | mm | SR10/3.0 | |
| Nozzle Stroke射嘴行程 | mm | 300-350 | |
| Number of Temperature Control温度控制段数 | - | 5 | |
| clamping system | Clamping Force锁模力 | tons | 120 |
| Rotary table diameter转盘直径 | mm | 1350 | |
| Station转盘站数 | 2 | ||
| Max Mold size最大装模尺寸 | mm | 600*450 | |
| Min Mold Height最小模厚 | mm | 400 | |
| Opening Stroke开模行程 | mm | 275 | |
| Max Open Daylight最大开模间距 | mm | 675 | |
| Ejector Force顶出力 | tons | 4 | |
| Ejector Stroke顶出行程 | mm | 100 | |
| oil pressure system | Max Hydraulic Pressure最大液压压力 | kg/cm2 | 140 |
| Pump Output泵浦吐出量 | L/min | 126 | |
| Cooling Water Consumption冷却水用量 | /hr | 1500--2000 | |
| SERVO Motor Power伺服马达功率 | KW | 18 | |
| Rotary table SERVO Motor Power转盘伺服功率 | KW | 2.9 | |
| Ejector Motor Power独立顶针功率 | KW | 2.2 | |
| Barrel Heating Power电热功率 | kw | 8.5 | |
| Total Power总功率 | kw | 31.6 | |
| other | Machine Weight机器重量 | tons | 7 |
| Machine Dimension机器尺寸 | m | 3.15*2*3.45/4 |
