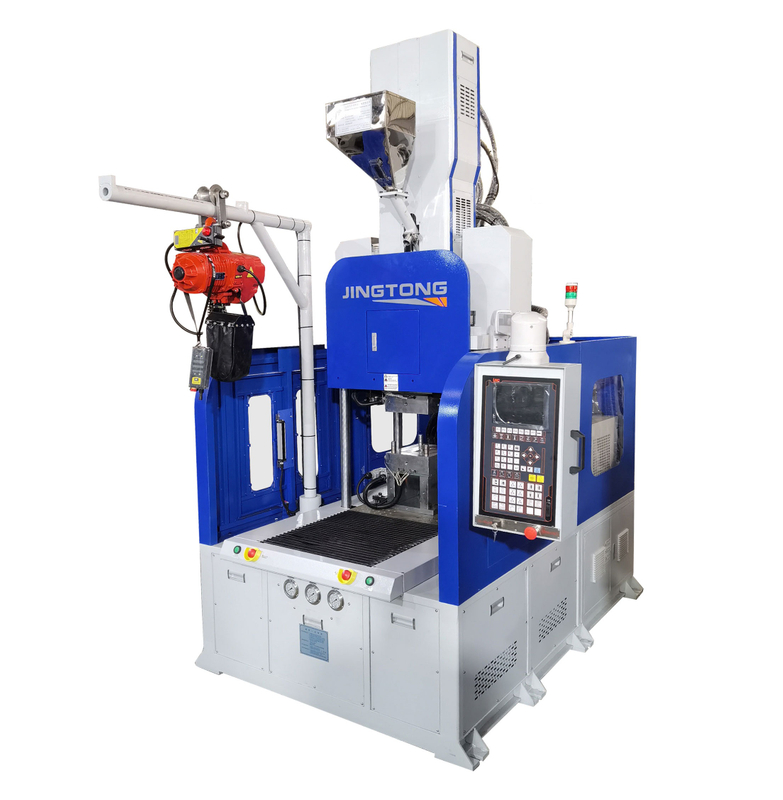

JTTR-850D
JINTONG
| Model | JTTR-850D | ||
| injection system | Screw Diameter | mm | 35 40 45 50 |
| Injection Pressure | kg/cm2 | 2171 1663 1314 1064 | |
| Theoretical Shot Volume | cm3 | 183 238 302 373 | |
| Max Shot Weight | g | 82 107 135 167 | |
| Injection Rate | cm3/sec | 190 | |
| Screw Stroke | mm | 140 | |
| Screw Speed | rpm | 0-200 | |
| Nozzle Contact Force | tons | 2.9 | |
| Nozzle Stroke | mm | 220 | |
| Number of Temperature Control | - | 4 | |
| Hopper Capacity | L | 30 | |
| clamping system | Clamping Force | tons | 85 |
| Opening Force | tons | 10.5 | |
| Platen Size | mm | 740x500 | |
| Distance Between Tie Bar | mm | 560x320 | |
| Min Mold Height | mm | 250 | |
| Opening Stroke | mm | 250 | |
| Max Open Daylight | mm | 500 | |
| Ejector Force | tons | 3.3 | |
| Ejector Stroke | mm | 75/145 | |
| sliding system | Slide Stroke | mm | 500 |
| Max Mold Weight | kg | 200 | |
| Station Clearance | mm | ±0.02 | |
| oil pressure system | Max Hydraulic Pressure | kg/cm2 | 140 |
| Pump Output | L/min | 76 | |
| Oil Reservior Capacity | L | 180 | |
| Cooling Water Consumption | /hr | 1200-1500 | |
| Pump Moter Power | KW | 11 | |
| Barrel Heating Power | kw | 5.6 | |
| Total Power | kw | 16.6 | |
| other | Machine Weight | tons | 4.8 |
| Machine Dimension | m | 2.4*1.30*2.8 | |
| Shipping Weight | tons | 5 | |
| Shipping Measurement | m | 2.5*1.40*2.95 |
